Air Chargers: AC-AP-1

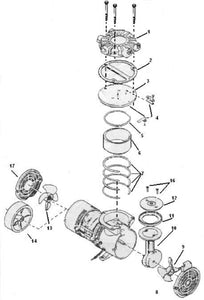

DescriptionREPLACEMENT PARTS

REF # DESCRIPTION PART QTY. AP 1 & 2
1
HEAD
1 AJ347
*2
HEAD GASKET
1 AJ404
*3
VALVE PLATE ASSEMBLY
1 AJ793
4
VALVES
2 AG973/AJ827
*5
O-RING
1 AJ787
6
CYLINDER
1 AK375B
7
SHIMS
AS REQ. AJ345
8
FRONT GRILLE
1 AG774B
9
FAN
1 AJ856
10
CONNECTING ROD ASSEMBLY
1 AK380
*11
CUP
1 AJ826
12
RETAINER PLATE
1 AK377
13
FAN
1
14
INERTIA FAN
1 AJ677
15
TOLERANCE RING
1 AJ904
16
DOWEL PIN
1 AK487
17
GRILLE
1
REPAIR KIT
1 K767

* Denotes parts included in repair kit.



REASON LOW
PRESSURE
HIGH
PRESSURE
LOW
VACUUM
EXCESSIVE
NOISE
OVER
HEATING
WON'T
START
Dirty Filter X       X
Dirty Muffler     X   X X
Dirty Valves X   X
Damaged Valves X   X X   X
Wom/Damaged Cup X   X
Improper Cyl. Shimming X X X X X X
Leaky Hose X   X
Leaky Check Valve           X
Plugged Vac. or Pressure X X X   X X
Low Voltage X   X   X X
Leaky Relief Valve X   X
